Scene Struct Reference

Scene object to hold all entities and components. More...

#include <Scene.hpp>

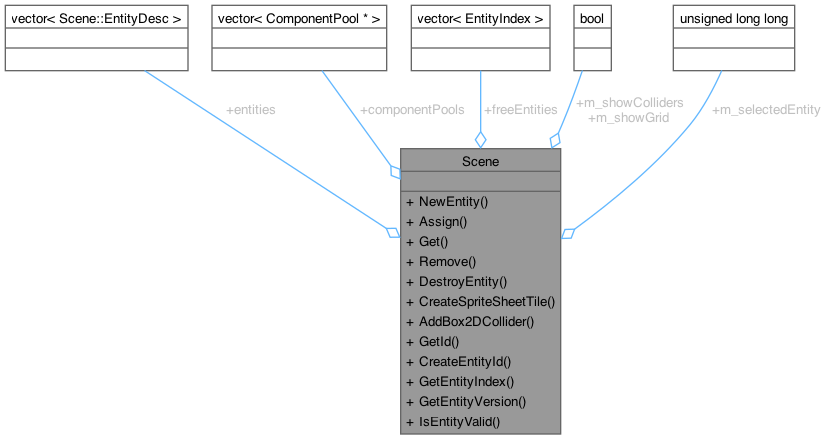

Collaboration diagram for Scene:

Classes
struct	EntityDesc
	Entity Description. More...

Public Member Functions
EntityID	NewEntity ()
	Construct a new Entity object.
template<typename T >
T *	Assign (EntityID id)
	Assign a component to an entity.
template<typename T >
T *	Get (EntityID id)
	Get the component object from an entity.
template<typename T >
void	Remove (EntityID id)
	Remove a component from an entity.
void	DestroyEntity (EntityID id)
	Destroy an entity.
void	CreateSpriteSheetTile (int x, int y, b2World *physicsWorld, Board *board)
	Create a new SpriteSheet entity.
void	AddBox2DCollider (EntityID entityID, bool isStatic, bool isTrigger, float x, float y, float width, float height, b2World *physicsWorld)
	Add a Box2D collider to an entity.
template<class T >
int	GetId ()
EntityID	CreateEntityId (EntityIndex index, EntityVersion version)
EntityIndex	GetEntityIndex (EntityID id)
EntityVersion	GetEntityVersion (EntityID id)
bool	IsEntityValid (EntityID id)

Public Attributes
std::vector< EntityDesc >	entities
std::vector< ComponentPool * >	componentPools
std::vector< EntityIndex >	freeEntities
bool	m_showGrid = true
bool	m_showColliders = true
EntityID	m_selectedEntity = -1

Detailed Description

Scene object to hold all entities and components.

Member Function Documentation

AddBox2DCollider()

void Scene::AddBox2DCollider	(	EntityID	entityID,
		bool	isStatic,
		bool	isTrigger,
		float	x,
		float	y,
		float	width,
		float	height,
		b2World *	physicsWorld )

Add a Box2D collider to an entity.

Parameters

entityID
isStatic
x
y
physicsWorld

Assign()

template<typename T >

template Box2DColliderComponent * Scene::Assign< Box2DColliderComponent >

(

EntityID

id

)

Assign a component to an entity.

Template Parameters

T

Component

Parameters

id

Entity ID

Returns

T* Pointer to the component

CreateEntityId()

EntityID Scene::CreateEntityId	(	EntityIndex	index,
		EntityVersion	version )

CreateSpriteSheetTile()

void Scene::CreateSpriteSheetTile	(	int	x,
		int	y,
		b2World *	physicsWorld,
		Board *	board )

Create a new SpriteSheet entity.

Parameters

x
y
sheetLocal
physicsWorld

DestroyEntity()

void Scene::DestroyEntity

(

EntityID

id

)

Destroy an entity.

Parameters

id

Entity ID

Get()

template<typename T >

template Box2DColliderComponent * Scene::Get< Box2DColliderComponent >

(

EntityID

id

)

Get the component object from an entity.

Template Parameters

T

Component

Parameters

id

Entity ID

Returns

T* Pointer to the component

GetEntityIndex()

EntityIndex Scene::GetEntityIndex

(

EntityID

id

)

GetEntityVersion()

EntityVersion Scene::GetEntityVersion

(

EntityID

id

)

GetId()

template<class T >

int Scene::GetId

(

)

IsEntityValid()

bool Scene::IsEntityValid

(

EntityID

id

)

NewEntity()

EntityID Scene::NewEntity

(

)

Construct a new Entity object.

Returns

EntityID

Remove()

template<typename T >

template void Scene::Remove< Box2DColliderComponent >

(

EntityID

id

)

Remove a component from an entity.

Template Parameters

T

Component

Parameters

id

Entity ID

Member Data Documentation

componentPools

std::vector<ComponentPool *> Scene::componentPools

entities

std::vector<EntityDesc> Scene::entities

freeEntities

std::vector<EntityIndex> Scene::freeEntities

m_selectedEntity

EntityID Scene::m_selectedEntity = -1

m_showColliders

bool Scene::m_showColliders = true

m_showGrid

bool Scene::m_showGrid = true

---

The documentation for this struct was generated from the following files:

• Scene.hpp
• Scene.cpp
